Constructing EOS and solving TOV equations in scalar tensor theory#
⚠️ This solver is still in development. Therefore, expect breaking changes in this notebook.
This example notebook shows how to construct the equation of state with the metamodel and speed-of-sound extension scheme parametrization used in the paper, as well as solve the TOV equations.
[1]:
import matplotlib.pyplot as plt
params = {
"text.usetex": True,
"font.family": "serif",
"font.serif": ["Computer Modern Serif"],
"xtick.labelsize": 16,
"ytick.labelsize": 16,
"axes.labelsize": 16,
"legend.fontsize": 16,
"legend.title_fontsize": 16,
}
plt.rcParams.update(params)
import jax.numpy as jnp
from jesterTOV.eos.metamodel.metamodel_CSE import MetaModel_with_CSE_EOS_model
from jesterTOV.eos.families import construct_family_ST, construct_family_ST_sol
import jesterTOV.utils as utils
---------------------------------------------------------------------------
ModuleNotFoundError Traceback (most recent call last)
Cell In[1], line 17
15 import jax.numpy as jnp
16 from jesterTOV.eos.metamodel.metamodel_CSE import MetaModel_with_CSE_EOS_model
---> 17 from jesterTOV.eos.families import construct_family_ST, construct_family_ST_sol
18 import jesterTOV.utils as utils
ModuleNotFoundError: No module named 'jesterTOV.eos.families'
Equation of state#
[ ]:
nsat = 0.16 # nuclear saturation density in fm^-3
# Define the EOS object, here we focus on Metamodel with CSE
eos = MetaModel_with_CSE_EOS_model(nmax_nsat=6.0)
# Define the nuclear empirical parameters (NEPs) -- all in MeV
NEP_dict = {
"E_sat": -16.0, # saturation parameters
"K_sat": 200.0,
"Q_sat": 0.0,
"Z_sat": 0.0,
"E_sym": 32.0, # symmetry parameters
"L_sym": 40.0,
"K_sym": -100.0,
"Q_sym": 0.0,
"Z_sym": 0.0,
}
# Define the breakdown density -- this is usually between 1-2 nsat
nbreak = 1.5 * nsat
NEP_dict["nbreak"] = nbreak
# Then we extend with some CSE grid points
ngrids = jnp.array([2.0, 3.0, 4.0, 5.0]) * nsat
cs2grids = jnp.array([0.5, 0.4, 0.3, 0.2]) # speed of sound squared at the grid points
# Now create the EOS -- returns a tuple with most useful EOS quantities
ns, ps, hs, es, dloge_dlogps, mu, cs2 = eos.construct_eos(NEP_dict, ngrids, cs2grids)
# Make a plot
plt.subplots(nrows=2, ncols=2, figsize=(12, 10))
# For the plot, let's make some conversions to more common units
ns_plots = ns / utils.fm_inv3_to_geometric / 0.16
es_plots = es / utils.MeV_fm_inv3_to_geometric
ps_plots = ps / utils.MeV_fm_inv3_to_geometric
# p(n)
plt.subplot(221)
plt.plot(ns_plots, ps_plots)
plt.xlabel(r"$n$ [$n_{\rm{sat}}$]")
plt.ylabel(r"$p$ [MeV/fm$^3$]")
# e(n)
plt.subplot(222)
plt.plot(ns_plots, es_plots)
plt.xlabel(r"$n$ [$n_{\rm{sat}}$]")
plt.ylabel(r"$e$ [MeV/fm$^3$]")
# cs2(n)
plt.subplot(223)
plt.plot(ns_plots, cs2)
plt.xlabel(r"$n$ [$n_{\rm{sat}}$]")
plt.ylabel(r"$c_s^2$")
plt.axvline(0.5, color="red", label="Crust-core transition")
plt.axvline(nbreak / nsat, color="black", label=r"$n_{\rm{break}}$")
plt.legend()
# p(e)
plt.subplot(224)
plt.plot(es_plots, ps_plots)
plt.xlabel(r"$e$ [MeV/fm$^3$]")
plt.ylabel(r"$p$ [MeV/fm$^3$]")
plt.tight_layout()
# plt.show() # uncomment to see the EOS
plt.close()
Neutron stars#
Solving the TOV equations to construct an M(R) curve
NOTE: Tidal deformabilities work in progress
[ ]:
# Solve TOV equations:
beta_ST = -4.5
# initial guesses
phi_c = -0.1
nu_c = -1.2
# Enter through EoS
eos_tuple = (ns, ps, hs, es, dloge_dlogps, beta_ST, phi_c, nu_c)
logpc, masses, radii, Lambdas = construct_family_ST(eos_tuple, ndat=50, min_nsat=1.0)
# Make a plot
plt.subplots(nrows=1, ncols=2, figsize=(12, 6))
# Limit masses to be above certain mass to make plot prettier
m_min = 0.5
mask = masses > m_min
masses = masses[mask]
radii = radii[mask]
Lambdas = Lambdas[mask]
# M(R) plot
plt.subplot(121)
plt.plot(radii, masses)
plt.xlabel(r"$R$ [km]")
plt.ylabel(r"$M$ [$M_\odot$]")
# Lambda(R) plot
plt.subplot(122)
plt.plot(masses, Lambdas)
plt.xlabel(r"$M$ [$M_\odot$]")
plt.ylabel(r"$\Lambda$")
plt.yscale("log")
plt.tight_layout()
plt.show()
plt.close()
/var/folders/xj/6sk96vdn15385fpjn9nd1rcw0000gp/T/ipykernel_57185/3867325403.py:30: UserWarning: Data has no positive values, and therefore cannot be log-scaled.
plt.yscale("log")

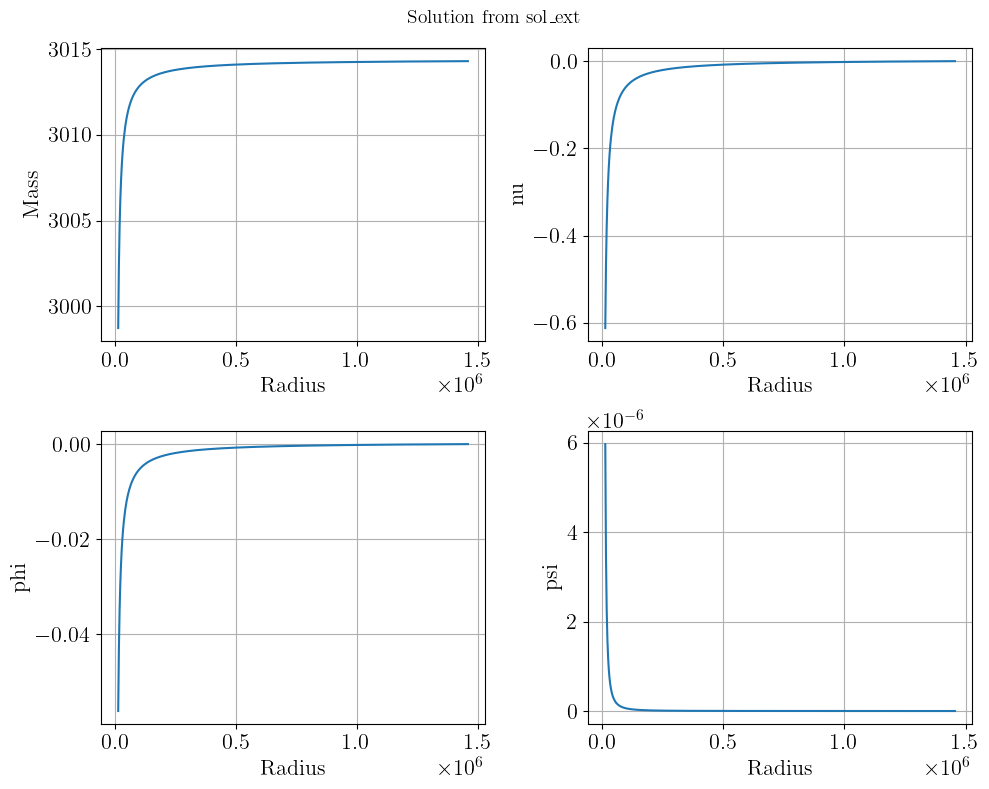

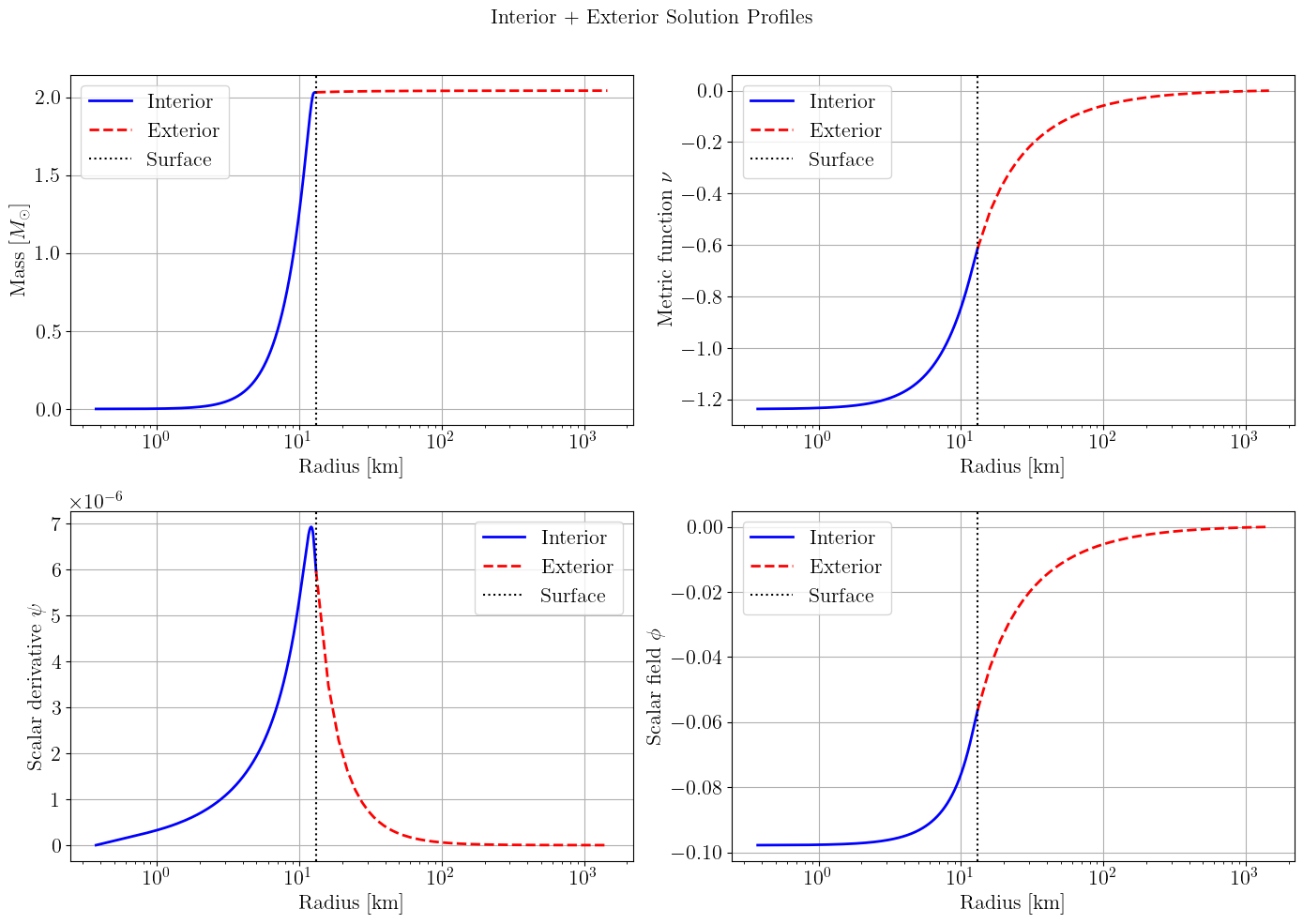

Solve the TOV equations for a single point in debug mode, to recover full details on the constructed solution
[ ]:
# Solve TOV equations:
beta_ST = -4.5
phi_c = -0.1
nu_c = -1.2
eos_tuple = (ns, ps, hs, es, dloge_dlogps, beta_ST, phi_c, nu_c)
logpc, masses, radii, Lambdas, sol_iter, sol_ext = construct_family_ST_sol(
eos_tuple, ndat=1, min_nsat=3.0
)
# Limit masses to be above certain mass to make plot prettier
m_min = 0.5
mask = masses > m_min
masses = masses[mask]
radii = radii[mask]
Lambdas = Lambdas[mask]
# Check out first batch
r_vals_float = sol_ext.ts[0]
M_vals_float = sol_ext.ys[0][0]
nu_vals_float = sol_ext.ys[1][0]
phi_vals_float = sol_ext.ys[2][0]
psi_vals_float = sol_ext.ys[3][0]
# r_vals_float = jnp.array(r_vals/1e3).tolist()
# M_vals_float = jnp.array(M_vals/utils.solar_mass_in_meter).tolist()
# nu_vals_float = jnp.array(nu_vals).tolist()
# phi_vals_float = jnp.array(phi_vals).tolist()
# psi_vals_float = jnp.array(psi_vals).tolist()
